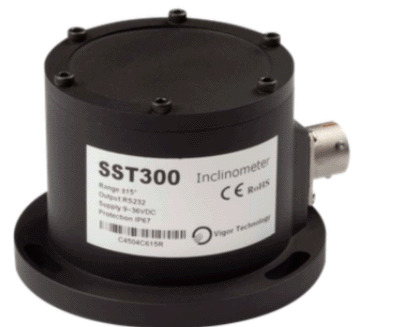

SST300 정밀형 경사계

일반형 경사계 / 1축-2축 / 다양한 각도 / 아날로그(전압 전류)출력 / 디지털출력

가격견적 문의사양·수량·납기에 따라 견적을 보내드립니다.

상세 정보

MEMS High-Performance Inclinometer · ±0.01° @25℃ · Vigor Technology

높은 정확도(±0.01° @25℃)의 고성능 MEMS 경사계입니다. 절대 선형측정, 교차축 감도, 오프셋, 반복성, 히스테리시스가 결합된 정밀 보정 제품입니다.

용기, 정밀기기, 보안탐지, 군용 프로젝트, 플랫폼 평준화, 드릴링 머신, 유압 레벨링 등에 사용됩니다.

정확도±0.01° @25℃

측정범위±5° ~ ±60°

분해능0.0025°

보호등급IP67

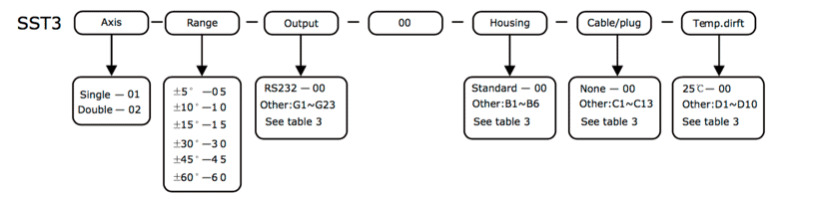

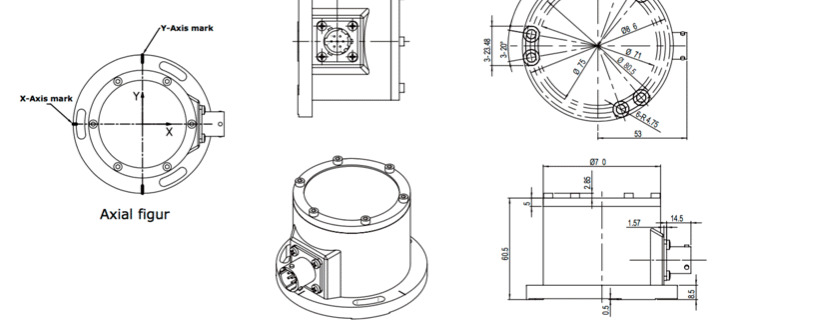

Measurement range	±5°	±10°	±15°	±30°	±45°	±60°
Combined absolute accuracy (@25℃)	±0.01°	±0.015°	±0.02°	±0.04°	±0.06°	±0.08°
Absolute linearity (LSF, %FS)	±0.06	±0.03	±0.03	±0.03	±0.02	±0.02
Input axis misalignment	±4.0°	±3.0°	±2.5°	±1.5°	±1.2°	±1.2°
Offset	±0.005°	±0.005°	±0.005°	±0.005°	±0.008°	±0.008°
Sensitivity temperature drift (max.)	≤100 ppm/℃	≤50 ppm/℃	≤50 ppm/℃	≤50 ppm/℃	≤50 ppm/℃	≤50 ppm/℃

Cross-axis sensitivity	±0.1%FS
Repeatability	±0.0025°
Hysteresis	±0.0025°
Offset temperature drift coefficient (max.)	≤ 0.003°/℃
Offset turn on repeatability	±0.008°
Resolution	0.0025°
Long-term stability (1 year)	≤ 0.02°
Measurement axis	1 axis or 2 axis
Temperature sensor	Range: -50 ~ 125℃, Accuracy: ±1℃
Output	RS232 (optional G1~G23)
RS232 data format	115200 baud rate, 8 data bits, 1 start bit, 1 stop bit, none parity
Cold start warming time	60 s
Response time	0.3 s (@t90)
Refresh rate (digital output)	5 Hz (optional 10 Hz, 20 Hz)
Response frequency (analog output)	3 Hz @ -3 dB
Power supply	9 ~ 36 VDC
Power consumption	Average working current ≤ 50 mA, average power ≤ 1.5 W (25℃ & 24VDC)
Operation temperature	-40 ~ 85℃
Storage temperature	-60 ~ 100℃
EMC	According to EN 61000 and GBT17626
Insulation resistance	100 MΩ
MTBF	≥ 25000 h/times
Shock	100 g @ 11 ms, three-axis, half-sine
Vibration	8 grms, 20 ~ 2000 Hz
Protection	IP67
Connecting	Military class connector (MIL-C-26482)
Weight	420 g (without connector and cable)
