SST 시리즈 경사계

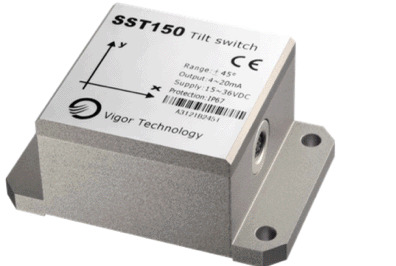

SST100 General Purpose 경사계

일반형 경사계 / 1축-축 / 다양한 각도 / 아날로그(전압 전류)출력 / 디지털출력 / 0.01 해상도

가격견적 문의사양·수량·납기에 따라 견적을 보내드립니다.

상세 정보

MEMS Analog Inclinometer · SST141/142/151/152/161/162 · Vigor Technology

가격대 성능비가 좋은 높은 안정성의 MEMS 경사계입니다. 작은 사이즈로 사용이 간편하며, 실링되어 있어 진동과 충격에 견딥니다.

전압(0.5~4.5 VDC), 전류(4~20 mA), 디지털(RS232/RS485/CAN 등) 출력 모델을 선택할 수 있으며, 모바일 건축 기계류, 공장자동화, 태양열 장비류, 이송형 기계류, 의료 장비 등에 사용됩니다.

측정범위±5° ~ ±180°

정확도±0.05°

분해능0.01°

보호등급IP67

Product type	SST141, SST142, SST151, SST152, SST161, SST162 (analog/digital output)
Measurement range	±5° / ±10° / ±15° / ±30° / ±45° / ±60° / ±90° / ±180°
Accuracy (@25℃)	±0.05°
Temperature drift coefficient /℃ @ -20~65℃	±0.004° (±5°~±15°) · ±0.005° (±30°~±60°) · ±0.009° (±90°~±180°)
Resolution	0.01°
Repeatability	±0.02°
Offset repeatability	±0.02°
Offset	±0.02°
Measurement axis	1 axis: SST141, SST151, SST161 2 axis: SST142, SST152, SST162
Response time	0.3 s @ t90
Cross-axis sensitivity	±0.3%FS
Digital output (SST161, SST162)	RS232 (optional RS485, CAN, CANopen, J1939), 9600bps(adjustable), 8 data bits, 1 start bit, 1 stop bit, none parity
Voltage output (SST141, SST142)	0.5 ~ 4.5 VDC, Output Impedance 0.3 Ω, load impedance < 380 Ω
Current output (SST151, SST152)	4 ~ 20 mA, Output Impedance 50 MΩ, load impedance < 380 Ω
Cold start warming time	60 s
Power supply	Digital/voltage output: 9 ~ 36 VDC, ≤ 20 mA Current output: 16 ~ 36 VDC, ≤ 40 mA
Power supply reject ratio	≥ 85 dB
Operation temperature	-40 ~ 85 ℃
Storage temperature	-40 ~ 100 ℃
EMC	According to GBT17626
Insulation resistance	≥ 100 MΩ
MTBF	150000 h/times
Shock	100 g @ 11 ms, three-axis, half-sine
Vibration	8 grms, 20 ~ 2000 Hz
Protection	IP67
Housing	6061-T6 Aluminum alloy

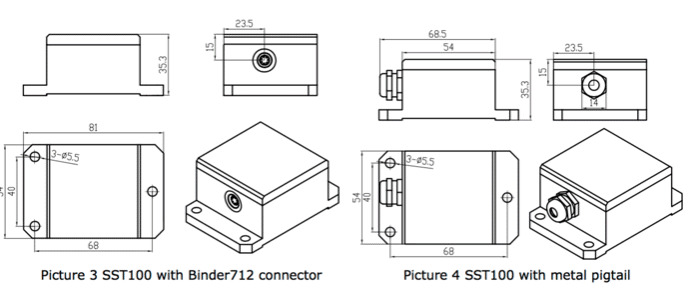

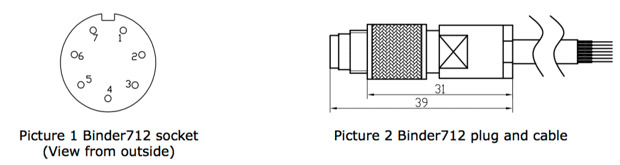

Connecting	Standard: Binder712 connector (optional: metal pigtail)
Cable	7-wire shielded cable with tensile reinforcement, heavy duty up to 30 kg
Weight	≤ 240 g (without connector and cable)

Model	Axis	Connector	Output
SST141	1	Binder712(-C), optional Pigtail(-P)	0.5 ~ 4.5 VDC
SST142	2	Binder712(-C), optional Pigtail(-P)	0.5 ~ 4.5 VDC
SST151	1	Binder712(-C), optional Pigtail(-P)	4 ~ 20 mA
SST152	2	Binder712(-C), optional Pigtail(-P)	4 ~ 20 mA
SST161	1	Binder712(-C), optional Pigtail(-P)	RS232 (Optional RS485, CAN, CANopen, J1939)
SST162	2	Binder712(-C), optional Pigtail(-P)	RS232 (Optional RS485, CAN, CANopen, J1939)
